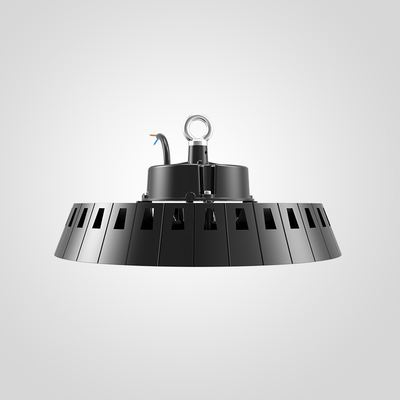

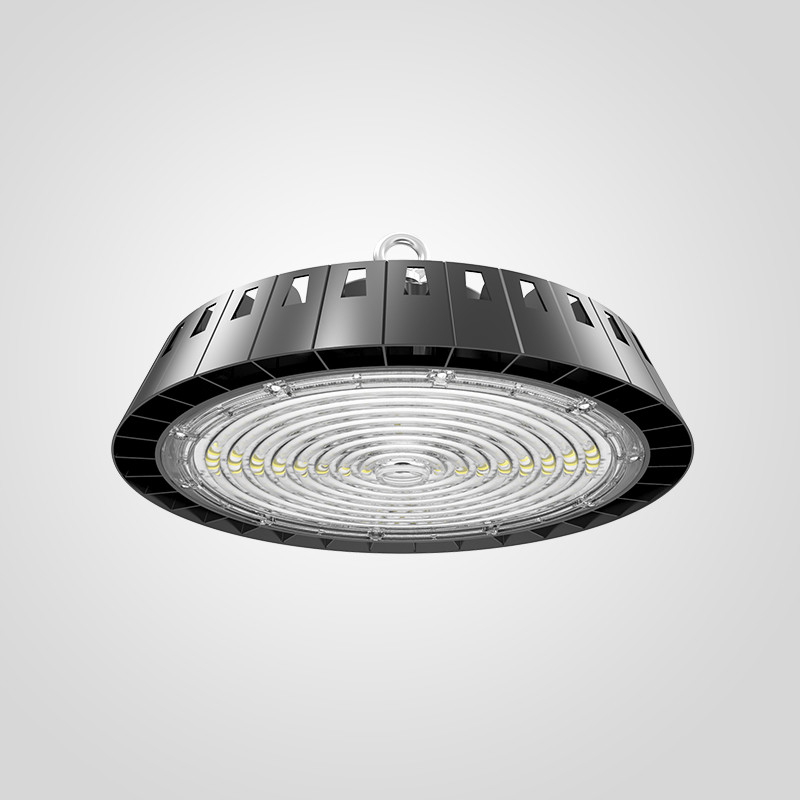

Long-Lasting W-Series LED High Bay Light with Excellent Heat Dissipation

Brand Name:	Goldenlux
Model Number:	W-Series
MOQ:	1
Price:	$28-999
Packaging Details:	Cartons
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS

Material:

Aluminum+PC

Input Voltage:

AC120-277V | 50/60Hz

Luminous Flux:

14000lm-40800lm

IP Rate:

IP65 Protection

Standard Colour(s):

RAL 9017 Black

LED Brand:

SMD2835

Usage:

Industrial

Driver Brand:

Sosen Or Equivalent Quality Driver

LED Life Span:

100,000 Hrs

Product:

UFO LED High Bay Light

Control Protocol(s):

1-10V, DALI2(Optional)

Operating Temperature Range:

-30°C To +45°C

Mounting Option:

Loop Hanging, Bracket Mounting

Power Efficiency:

Supply Ability:

Thousands Pieces/Month

Highlight:

heat dissipation led bay light

heat dissipation led high bay light

10v led bay light

Product Description

Up To 170LM/W

W-Series is Cost-Effective High Bay Light With Combination Of High Performance, Offering 150LM/W, And 170LM/W Super High Lumen Output Version.

A Variety Of Power Supply Options

Output wattage covers 100W-240W. Goldenlux try it best to become the leader in UFO High Bay Lighting design and makes efficiency of LED High Bay Lighting much more better. Simultaneously, we provided 0/1-10V or DALI2 dimming functions to allow customers to use smart Lighting control for desired effect. Goldenlux has comprehensive Lighting Solutions for all kinds of application.

Up To 240W

Warranty 5 Years.

Mounting Options

Eye-Bolt, Or Adjustable Bracket For Surface Mounting.

Motion Sensor Available

Applications like warehouses, distribution centers, production facilities and other Industrial Spaces with occupancy less than 50% and High Ceilings(15 – 45 ft) are ideal environment for sensors. sensors help in save energy costs by delivering Light only where you need it, when you need it.

Multi-Angle Display

Choose 60°, 90° or 120° Lens And Reflectors Are Available As Accessories.

Anti-Glare Reflector

Use this reflector to reduce glare from your 100-150-200-240 Wattage UFO LED High-Bay Light and to create a traditional High Bay look. The reflector installs around the fixture's lens and comes with 4 screws to secure it in place.

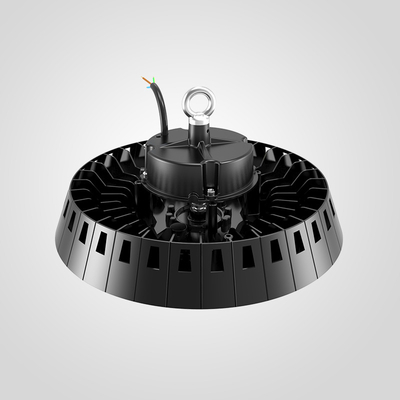

Excellent Heat Dissipation

Our product does a fantastic job at handling heat, which means it works really well, lasts a long time.

W-Series Product Technical Specifications

Series	W-Series
Power	100W, 150W, 200W, 240W
Efficacy	150LM/W, 170LM/W
Input Voltage	120-277VAC, 50/60 Hz
Power Factor	＞0.9
Surge Protector	6KV Line-Line, 6KV Line-Earth
Control	1-10V, DALI2 (Optional)
IP Rating	IP65
IK Rating	IK09
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	70, 80
Operating Temperature	-30°C — +45°C
Beam Angle	60°, 90°, 120° Beam Angle
Mounting Option	Loop Hanging, Bracket Mounting
Reflector	Aluminum Reflector/ PC Reflector
Warranty	5 Years Warranty
