IP66 Waterproof 160LM/W 200W LED Street Light With Optional NEMA Light Sensing Function

All Category

LED Street Light

Mr. Andy

andy@goldenlux.cn

+86 15920052606

Contact Now

IP66 Waterproof 160LM/W 200W LED Street Light With Optional NEMA Light Sensing Function

Brand Name:	Goldenlux
Model Number:	SL01-Series
MOQ:	1
Price:	$28-999
Packaging Details:	Cartons
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS

Selling Units:

Single Item

Housing:

High Heat-conductive Aluminum + PC Lens+ Glass

Available Wattages:

60W/ 80W/ 100W/ 150W/ 200W

CRI>70 Standard, CRI>80 Optional

Installation:

Side Entry Or Vertical Pole Mounted

Lamp Body Material:

Aluminum Alloy

Application:

Street, Highway, Road

IP Grade:

Lumen Efficiency:

130lm/W-160lm/W

Housing Color:

Aluminum Color

Packing Dimensions:

L780*W385*H188mm

Nominal Voltage:

AC120-277V | 50/60Hz

Color Temperature:

3000K-6500K

Frequency Range:

50/60Hz

Connector:

Zhaga(Optional), NEMA, 3/5/7-Pin(Optional)

Impact Resistance:

Standard Colour(s):

RAL 9007 Gray

Supply Ability:

Thousands Pieces/Month

Highlight:

160LM/W 200W LED Street Light

NEMA Light Sensing LED Street Light

IP66 200W LED Street Light

Product Description

SL01-Series Up To 160LM/W LED Street Light with Optional NEMA Light Sensing Function Up To 160LM/W

Designed from the ground up as a totally optimized LED Lighting System, the SL01-Series delivers incredible efficiency without sacrificing performance. The SL01 emits up to 26,000 lumens and featuring Type II, III, IV and V optics. Perfect for brightening street at an affordable price with a choice of photocell shorting cap and 5 Years Warranty. With its sleek design and advanced technology, it delivers efficient, reliable, and stylish illumination, transforming any environment into a brilliantly lit, energy-efficient space. Illuminate your world with confidence and sustainability.

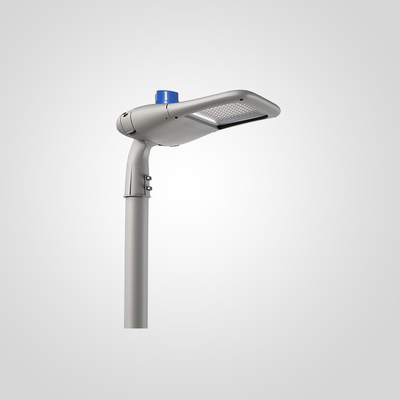

Optional NEMA Light Sensing Function

SL01 professional street lamps have optional NEMA Light sensing function. Automatic Lighting without manual operation. Meanwhile, the Lighting cost is greatly saved.

Can Be Equipped With Sensors

Get more energy saving with a smart Microwave Motion Sensor.

Two installation With One Spigot

Maximize Streetlight adaptability with our dual spigot installation, offering versatile placement options to suit your unique urban Lighting needs. Choose flexibility for superior street illumination.

Light Distribution

Choose a T2,T3,T4,T5 lenses and fullfil your various project needs.

SL01-Series Product Technical Specifications

Series	SL01-Series
Power	60W, 80W, 100W, 150W, 200W
Efficacy	130lm/W, 160lm/W
Input Voltage	120-277VAC, 50/ 60 Hz
Power Factor	0.9
Surge Protector	10KV-Line-Line, 10KV-Line-Earth, 20KV(Optional)
Control	1-10V, Photocell (optional)
IP Rating	IP66
IK Rating	IK08
CCT	3000K/ 4000K/ 5000K/ 5700K/ 6500K
CRI	CRI>70 Standard CRI>80 Optional
Operating Temperature	-30°C to +45°C
Beam Angle	Type2, Type3, Type4, Type5 Angle
Mounting Option	Side Entry or Vertical Pole Mounted
Reflector	Nano Reflector
Warranty	5 Years Warranty
