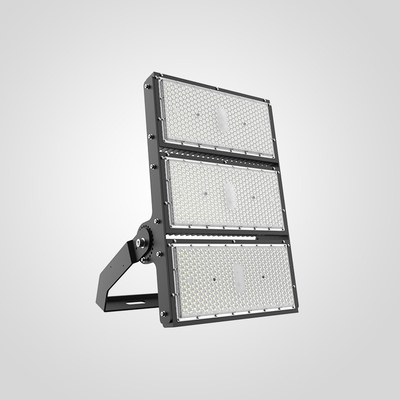

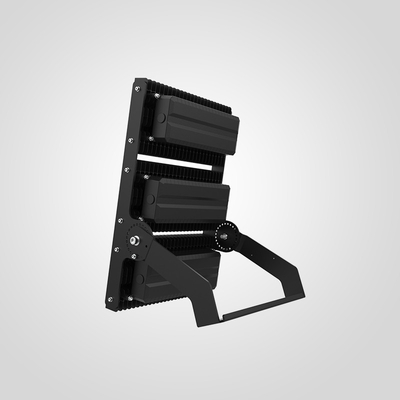

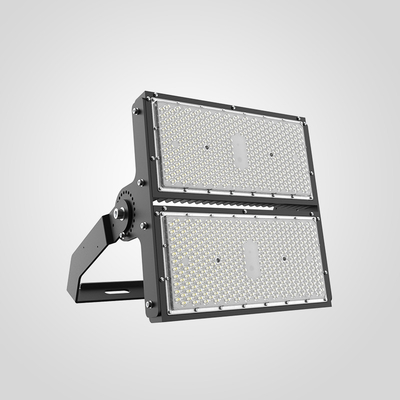

Wind Resistant LED Sports Light IP66 30m Height Outdoor Field Lighting

Brand Name:	Goldenlux
Model Number:	FL05-Series
MOQ:	1
Price:	$28-999
Packaging Details:	Cartons
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS

Working Temperature:

-30°C To +50°C

Efficacy:

150LM/W, 170LM/W

IP Rating:

Material:

Aluminum

Installation:

Bracket Mounting

Application:

Outdoor Sports Fields

Certifications:

CE, RoHS

Color Temperature:

3000K/ 4000K/ 5000K/ 5700K/ 6500K

Beam Angle:

15°/ 30°/ 45°/ 60°/ 90°/ 110X25°/ 110X40°

Power:

250W/ 500W/ 750W/ 1000W/ 1250W

Warranty:

5 Years

Input Voltage:

AC200-240V

Operating Humidity:

10%-90%RH

LED Type:

SMD3030/5050

Supply Ability:

Thousands Pieces/Month

Highlight:

Wind Resistant LED Sports Light

30m Height Outdoor Field Lighting

LED Sports Light IP66

Product Description

Wind Resistant FL05-Series LED Sports Light with 30m Installation Height Up to 170lm/W

The best in sport and area lighting gets better. FL05 has a Flood Mount option, improved asymmetric optical lenses for less glare and better light distribution. 20KV surge and all combined with Lumileds 3030 or 5050 LEDs for max 170 lumens to watt. Multiple power options with complete wattage.

Product Characteristics

1.Lens 3030/5050 optional

2.SMD 3030/5050 optional

3.Waterproof

4.Adjustable bracket design

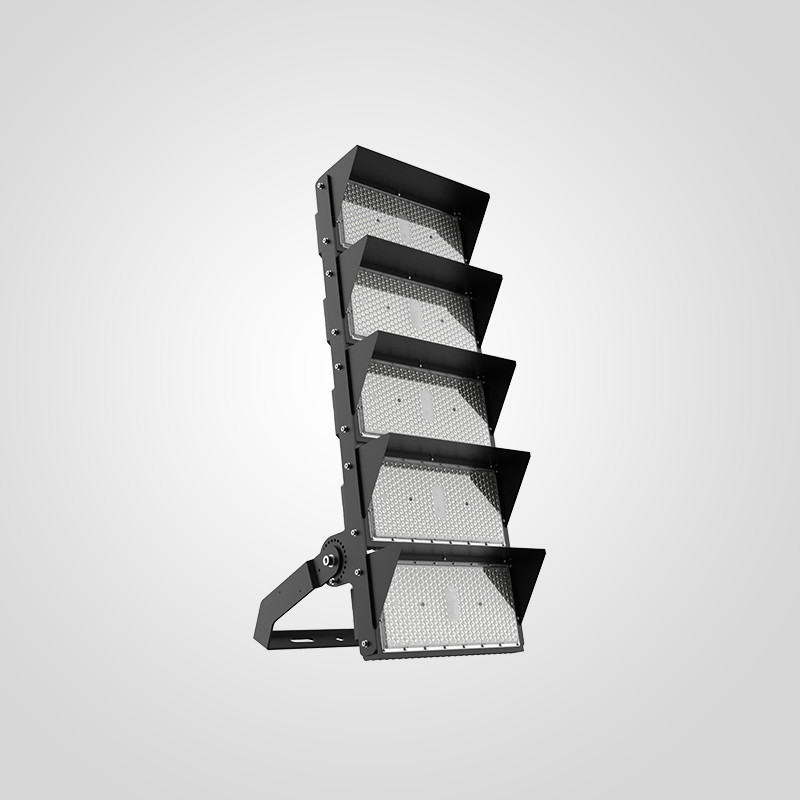

5.Visor

Durable & Reliable

Combining electrophoresis with powder coating, the brackets are protected very well for many harsh environments with good resistance against corrosion and Cable protection conduit for protecting cables or bundling single wires, Double Surface Treatment.

Windproof & 20KV Surge Protection

It is reliable and windproof when tested at 30m installation height. A SPD that reaches 20KV surge protection rating enables the luminaire works well under any bad weather.

Light Pollution Control

Your neighbors with never like useless glare in or around their homes. The night sky will be beautiful with twinkle stars and no light spiling. With special visor and optical lens design. Goldenlux FL05 is the one to make all this happen.

FL05-Series Product Technical Specifications

Series	FL05-Series
Power	250W, 500W, 750W, 1000W, 1250W
Efficacy	150LM/W \| 170LM/W
Input Voltage	200-240VAC, 50/60Hz
Power Factor	＞0.9
Surge Protection	20KV Line-Line, 20KV Line-Earth
Control	ON/OFF, 1-10V Dimmable, DALI
IP Rating	IP66
IK Rating	IK09
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	CRI＞70 Standard, CRI＞80 Optional
Operating Temperature	-30°C — +50°C
Beam Angle	Symmetric \| Asymmetric
Mounting Option	Bracket Mounting
Visor	Visor Optional
Warranty	Up To 5 Years Warranty
