Aluminium IP66 Gas Station Canopy Lights For Low Bay Areas Outdoor Canopy Lights

Brand Name:	Goldenlux
Model Number:	CP02-Series
MOQ:	1
Price:	$28-999
Packaging Details:	Cartons
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS

Waterproof Rank:

Beam Angle:

60°/ 90°/ 120°

Housing:

Aluminium

Nominal Voltage:

AC120-277V, 50/60Hz

Lumen Maintenance:

>100,000 Hours -L70, @25 ºC (77 ºF)

Power Range:

75W/ 100W/ 120W/ 150W

Material Of Body:

Electrostatic Polyester Powder Coating

Lifetime:

100,000 Hours

Lumen Output:

9750lm-21000lm

LED Driver:

Taiwan Meanwell Power Supply HLG Series

Chips:

SMD2835

Operation Temperature:

-30°C To +45°C

Efficacy:

130lm/W, 150lm/W

Impact Resistance:

Supply Ability:

Thousands Pieces/Month

Highlight:

IP66 Gas Station Canopy Lights

Aluminium Gas Station Canopy Lights

Low Bay Areas Outdoor Canopy Lights

Product Description

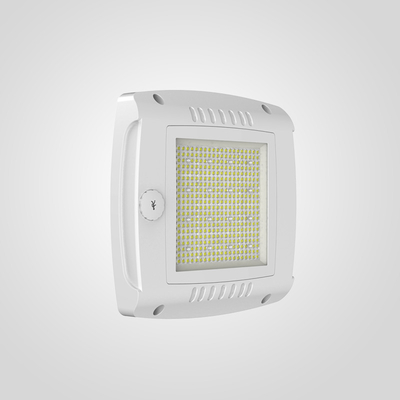

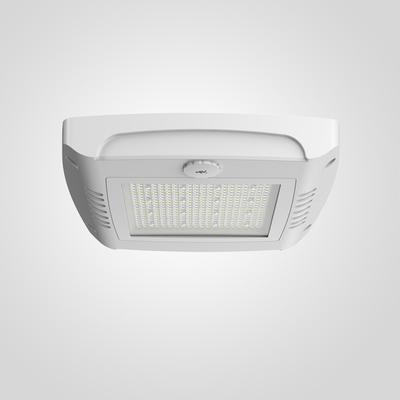

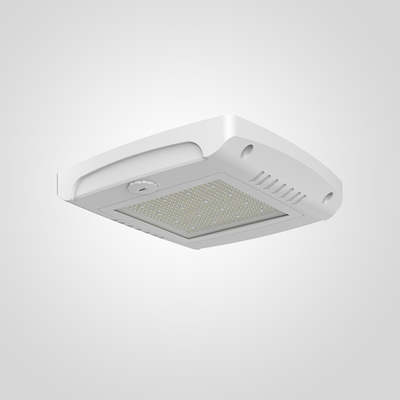

CP02-Series The Ultimate LED Canopy Light for Gas Stations and Low Bay Areas Canopy LED Light Fixture

CP02 is multiple installations Canopy Light (Gas Station Light), comes with superb efficacy up to 150lm/w. Ideal Lighting Solution for safer and more appealing gas stations and low bay general Lighting.

Can Be Equipped With Sensors

Get more energy saving with a smart Microwave Motion Sensor.

Multi-Angle Display

Choose a 60°, 90° or 120° lens and Aluminum Reflectors are available as accessories.

CP02-Series Product Technical Specifications

Series	CP02-Series
Power	75W, 100W, 120W, 150W
Efficacy	130LM/W, 150LM/W
Input Voltage	120-277VAC, 50/60Hz
Power Factor	＞0.9
Surge Protector	6KV Line-Line, 6KV Line-Earth
Control	1-10V, DALI2(Optional)
IP Rating	IP66
IK Rating	IK07
CCT	3000K, 4000K, 5000K, 5700K, 6500K
CRI	CRI＞70 Standard, CRI＞80 Optional
Operating Temperature	-30°C to +45°C
Beam Angle	60, 90, 120 Angle
Mounting Option	Ceiling Mount
Reflector	Aluminum Reflector
Warranty	5 Years Warranty
